Flame Proof Eot Cranes
Venus Engineers is a leading Flame Proof EOT Crane Manufacturer in Delhi, Gurgaon, NCR, and across India. Recognised among the most trusted EOT Crane Manufacturers in the country, we design and deliver Flame Proof EOT Cranes purpose-built for hazardous environments where flammable gases, combustible vapours, chemical fumes, or explosive dust are present in the atmosphere. Engineered in compliance with IS 3177, IS 4137, and IEC 60079 standards, our Flameproof EOT Cranes deliver the same lifting efficiency and precision as a conventional EOT Crane — with every electrical and mechanical component rated and certified for explosive atmospheres. With load capacities from 1 tonne to 50 tonnes, Venus Engineers provides a safe, reliable, and fully compliant material handling solution for India's most demanding hazardous-area industries.
Why Hazardous Environments Need a Specialised Crane
In industries where flammable substances are processed, stored, or transported, a standard EOT Crane presents a serious ignition risk. Conventional motors, brake systems, control panels, and limit switches generate electrical arcs and surface heat that can ignite explosive atmospheres — with potentially catastrophic consequences.
A Flame Proof EOT Crane eliminates this risk entirely. Every component that carries electrical current — the hoist motor, travel motors, brakes, control panels, limit switches, junction boxes, and pendant stations — is housed in certified explosion-proof enclosures that contain any internal ignition and prevent it from reaching the surrounding atmosphere. The result is a crane that performs all standard material handling functions while meeting the strictest industrial safety regulations for hazardous locations.
As experienced Flame Proof EOT Crane Manufacturers, Venus Engineers designs cranes for Zone 1 and Zone 2 hazardous areas as classified under IS 5572 and IEC 60079-10, available in both single girder and double girder configurations to match your facility's capacity and span requirements.
Configurations We Offer
Single Girder Flameproof EOT Crane
Built on a single box or I-beam girder, this configuration carries flameproof-rated hoists and travel mechanisms for capacities up to 10 tonnes. It is the preferred choice for smaller chemical processing units, pharmaceutical plants, and paint shops where headroom is limited and the hazardous zone is contained within a single bay.
Best for: Chemical storage areas, paint booths, pharmaceutical processing, solvent handling areas, small petrochemical units

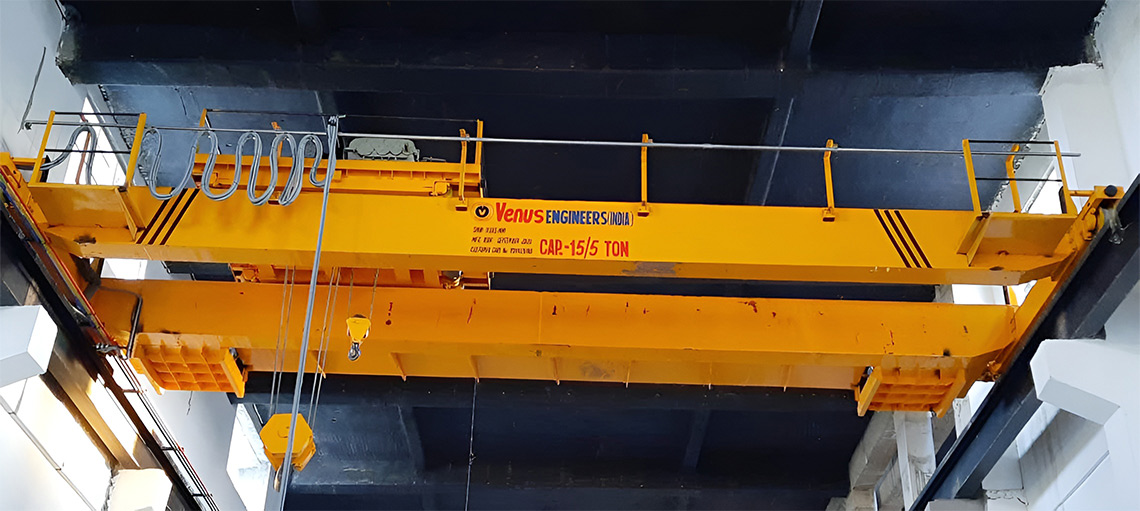

Double Girder Flameproof EOT Crane
Two parallel box girders carry a flameproof crab trolley mechanism, delivering capacities from 5 tonnes to 50 tonnes across long spans. Specified for large-scale refineries, heavy chemical plants, and gas processing facilities where high-cycle, heavy-duty lifting is required in a continuously hazardous atmosphere.
Best for: Oil refineries, petrochemical complexes, LPG and gas processing plants, explosive manufacturing, large chemical process industries
Technical Specifications
| Parameter | Specification |
| Lifting Capacity | 1 Tonne to 50 Tonnes |
| Span | Up to 30 Metres |
| Lifting Height | Up to 20 Metres (custom available) |
| Hazardous Zone Classification | Zone 1 & Zone 2 (IS 5572 / IEC 60079) |
| Gas Group | IIA, IIB, IIC |
| Temperature Class | T1 to T4 |
| Duty Class | M3 to M6 as per IS 3177 |
| Motor Type | Flameproof (Ex d) — IS 2148 / IEC 60079-1 certified |
| Control Panel | Flameproof enclosure, IP65 / IP66 rated |
| Pendant Station | Flameproof push-button / Intrinsically safe radio remote |
| Limit Switches | Flameproof-rated, IS 2148 certified |
| Brakes | Flameproof electro-hydraulic thruster brakes |
| Travel Speed (Long) | 10–30 m/min (VFD controlled) |
| Hoisting Speed | 0.5–6 m/min |
| Power Supply | 415V, 3 Phase, 50 Hz |
| Structural Compliance | IS 3177, IS 4137, IS 807 |
| Finish | Chemical-resistant epoxy primer + polyurethane topcoat |
Safety Features & Design Highlights
- Certified Flameproof Motors — All hoist and travel motors carry Ex d certification to IS 2148 / IEC 60079-1, ensuring no internal arc or spark can ignite the surrounding atmosphere
- Explosion-Proof Control Panels — Main control and distribution panels are housed in certified flameproof enclosures rated IP65 / IP66, preventing ingress of hazardous gases and moisture
- Flameproof Pendant and Remote Control — Push-button pendant is fully flameproof rated; wireless intrinsically safe radio remote available for maximum operator mobility and safety
- Certified Limit Switches — All hoisting, long travel, and cross-travel limit switches are individually certified for the specified gas group and temperature class
- Electro-Hydraulic Thruster Brakes — Flameproof-rated braking on all motions ensures controlled load holding and safe stopping without generating ignition-capable sparks
- VFD-Controlled Crane Motions — Variable frequency drives provide smooth, stepless speed control — reducing electrical stress on flameproof components and improving load positioning accuracy
- Corrosion-Resistant Construction — Chemical-resistant paint systems, stainless steel hardware options, and sealed bearing housings protect the structure in aggressive chemical environments
- Zone 1 & Zone 2 Compliance — Fully engineered per IS 5572 and IEC 60079-10, with gas group and temperature class selected specifically for your application
- IS 3177 / IS 4137 Structural Compliance — Crane structure designed and tested per Bureau of Indian Standards for load capacity, deflection, and fatigue life
Sectors Where Our Flameproof EOT Cranes Operate
As dedicated Flame Proof EOT Crane Manufacturers, Venus Engineers supplies cranes to hazardous-area facilities across Delhi, Gurgaon, NCR, and pan-India, including:
- Oil & Gas Refineries — Process area maintenance cranes, equipment handling in hydrocarbon-rich environments
- Petrochemical & Chemical Plants — Reactor vessel maintenance, drum and vessel handling, process equipment lifting
- Pharmaceutical Manufacturing — Solvent storage and handling areas, API processing zone lifting
- Paint & Coating Industries — Paint mixing rooms, spray booth areas, solvent storage handling
- Fertiliser Plants — Ammonia and chemical handling zones, process equipment maintenance
- LPG & Gas Processing — Cylinder handling, compressor maintenance, process area lifting
- Explosive & Ordnance Manufacturing — Certified lifting for licensed explosive manufacturing facilities
- Distilleries & Breweries — Vessel and tank lifting in alcohol vapour-classified zones
Why Choose Venus Engineers as Your Flameproof Crane Partner
Designing a Flame Proof EOT Crane for a hazardous area demands a level of engineering rigour that goes well beyond a standard crane project — zone classification, gas group selection, temperature class determination, and component-level certification must all be correctly addressed. As experienced EOT Crane Manufacturers with a dedicated in-house engineering team, Venus Engineers brings this specialised expertise backed by 25+ years of crane manufacturing experience.
- ISO 9001:2015 Certified — Quality systems across design, procurement, fabrication, and testing
- MSME Registered — Government of India recognised manufacturer
- 25+ Years of Crane Manufacturing — Proven expertise across standard and hazardous-area EOT Crane systems
- Certified Component Sourcing — All flameproof motors, panels, and switchgear sourced from IS / IEC certified manufacturers
- In-house Hazardous Area Engineering — Zone classification review, gas group selection, and certification verification handled internally
- After-Sales Support — AMC contracts, certified spare parts, and trained service engineers covering Delhi NCR and nationwide
- Nationwide Installation — Supply and commissioning across all major Indian industrial locations
