Gantry & Goliath Cranes
Venus Engineers is a leading Gantry Crane Manufacturer in Delhi, Gurgaon, NCR, and across India. Recognised among the top Gantry Crane Manufacturers in India, we design and deliver ground-supported lifting systems built for the most demanding outdoor and large-scale industrial environments. As experienced Goliath Crane Manufacturers in India, we supply cranes compliant with IS 3177, IS 4137, and IS 807, handling capacities from 1 tonne to over 100 tonnes across spans up to 40 metres. Whether you need a compact manual gantry for a workshop or a full-portal Goliath Crane for a heavy steel yard, Venus Engineers has the engineering depth, manufacturing capability, and after-sales network to deliver a solution built to perform.
What is a Gantry / Goliath Crane?
Unlike an EOT Crane that depends on a building's column-and-roof structure to carry its runway beams, a Gantry or Goliath Crane stands entirely on its own two legs. These legs travel on ground-level rails laid across the work area, allowing the full crane assembly to move longitudinally while the hoist trolley traverses the span — delivering complete three-dimensional coverage of a defined zone with zero dependency on surrounding structure.
This structural independence makes Gantry Cranes the preferred choice for open storage yards, outdoor fabrication areas, precast concrete facilities, construction sites, and any location where building structures cannot support conventional crane runway loads. They are equally well suited to large enclosed bays where column spacing or roof loading rules out a standard EOT Crane.
As dedicated Goliath Crane Manufacturers, Venus Engineers offers six variants — Single Girder Box Type, Double Girder Box Type, Single Girder I-Beam, Double Girder I-Beam, Semi Gantry, and Manual Gantry — covering everything from light-duty portable units to heavy industrial Goliath Cranes with full crab trolley mechanisms.
Gantry / Goliath Crane Variants We Manufacture

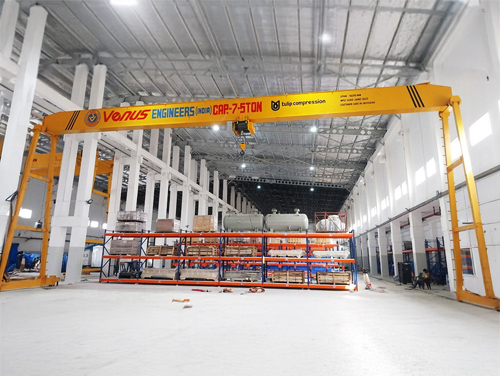

Single Girder Box Type Gantry Crane
A fabricated hollow box section bridge beam supported on two full-height structural legs. The box girder delivers excellent stiffness and controlled deflection across mid-range spans — making this the most widely ordered configuration from our plant for capacities from 2 tonnes to 20 tonnes in both indoor and outdoor environments.
Best for: Fabrication yards, outdoor storage areas, precast concrete handling, medium-duty industrial sites

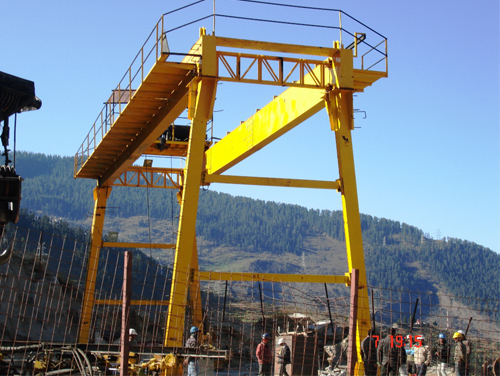

Double Girder Box Type Gantry Crane
Two parallel fabricated box girders carrying a motorised crab trolley between them — the configuration of choice for serious heavy-lift requirements. Engineered for 10 tonnes to 100+ tonnes with long spans, this Goliath Crane variant is built for applications where the crane runs continuously under demanding loads.
Best for: Steel processing yards, shipbuilding bays, heavy casting facilities, port material handling, large infrastructure projects
Single Girder I-Beam Gantry Crane
The most economical entry point in the Gantry Crane range — a standard rolled I-section beam as the bridge, suited for capacities up to 5 tonnes at moderate spans. It brings the structural independence of a Gantry Crane at significantly lower capital cost, ideal for smaller yards and light-duty applications.
Best for: Light outdoor lifting, small workshops, equipment maintenance yards, budget-sensitive applications
Double Girder I-Beam Gantry Crane
Two I-section beams provide increased capacity and span over the single girder I-beam type, while remaining more economical than full box section fabrication. A practical middle-ground for medium-duty applications where single beam capacity is insufficient but full box girder cost is not justified.
Best for: Stone and granite yards, medium-duty fabrication units, component storage and transfer areas

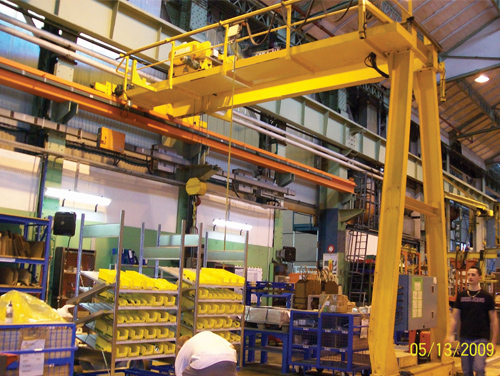

Semi Gantry Crane
A hybrid design — one leg runs on a ground rail while the opposite side of the bridge travels on an elevated runway fixed to an existing building wall or column. The Semi Gantry reduces civil work and cost significantly for facilities where one side of the working area adjoins a structural wall.
Best for: Mixed indoor-outdoor handling, facilities with an existing wall runway, space-constrained sites

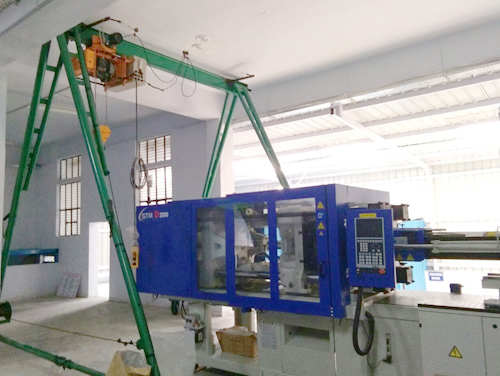

Manual Gantry Crane
A lightweight, portable structure operated entirely without electrical power. The hoist is a hand-chain block and the crane either tracks on floor rails or repositions on rubber-tyred wheels. A practical, zero-infrastructure lifting solution for low-frequency lifts and remote sites.
Best for: Maintenance workshops, construction sites without power supply, portable and occasional lifting tasks
Technical Specifications
| Parameter | Specification |
| Lifting Capacity | 1 Tonne to 100+ Tonnes |
| Span | Up to 40 Metres |
| Lifting Height | Up to 20 Metres (custom on request) |
| Duty Class | M3 to M7 as per IS 3177 |
| Long Travel Speed | 10–40 m/min (VFD controlled) |
| Cross Travel Speed | 5–20 m/min |
| Hoisting Speed | 0.5–8 m/min |
| Power Supply | 415V, 3 Phase, 50 Hz |
| Control | Pendant / Radio Remote |
| Leg Configuration | Rigid / Flexible (A-frame or box section legs) |
| Rail Type | Ground-mounted crane rails (ASCE / IS sections) |
| Structural Compliance | IS 3177, IS 4137, IS 807 |
| Hoist Type | Electric Wire Rope Hoist / Crab Trolley |
| Weatherproofing | IP55 motors and panels for outdoor applications |
| Finish | Epoxy primer + polyurethane topcoat |
Key Features & Advantages
- No Building Structure Required — Self-supporting legs eliminate dependency on roof trusses, columns, or runway beams, making installation possible in open yards, lightweight-roofed sheds, and greenfield sites
- Built for Outdoor Use — IP55-rated motors, weatherproof control panels, and corrosion-resistant surface treatment ensure reliable year-round performance in exposed environments
- Widest Capacity Range — From a 1-tonne manual gantry to a 100+ tonne Goliath Crane, our manufacturing range covers every scale of industrial lifting requirement
- Long Span Coverage — Spans up to 40 metres allow a single crane to cover an entire storage yard or fabrication bay without multiple installations
- VFD-Controlled Motions — Smooth acceleration, precise load positioning, reduced mechanical wear, and measurable energy savings across all crane motions
- Flexible Leg Geometry — Vertical rigid legs for standard applications; A-frame configurations for wide rail gauges and high-capacity stability requirements
- Radio Remote Control — Operator follows the load freely across the yard with a handheld transmitter — safer and more productive than a trailing pendant cable in open areas
- Standards Compliance — Designed, fabricated, load-tested, and certified as per IS 3177 / IS 4137 / IS 807
- Turnkey Project Delivery — Foundation design references, rail supply, erection, load testing, and commissioning managed end-to-end by Venus Engineers
Industries We Serve
As established Gantry Crane Manufacturers in India, Venus Engineers supplies cranes to industries across Delhi, Gurgaon, Faridabad, Noida, and pan-India, including:
- Steel & Structural Fabrication — Plate and section yard handling, structural steel storage and transfer
- Precast Concrete & Infrastructure — Mould stripping, segment handling, precast yard dispatch operations
- Shipbuilding & Defence — Hull block assembly, vessel component positioning, defence equipment depots
- Automotive & Heavy Engineering — Press tool handling, heavy component yard storage, large assembly areas
- Power Generation — Transformer logistics, generator yard handling, turbine component positioning
- Mining & Minerals — Ore yard transfer, heavy equipment maintenance, crusher support operations
- Railway & Metro Projects — Girder preparation, wagon handling, maintenance yard material management
- Construction & EPC — Heavy civil works, equipment yard management, on-site material transfer
Why Choose Venus Engineers?
As experienced Goliath Crane Manufacturers in India, every crane we deliver is engineered from the ground up for your specific site, load, and duty cycle — not selected from a standard catalogue. From our manufacturing plant in Neemrana, Rajasthan, we serve clients across Delhi NCR and 20+ Indian states with in-house engineering, strict fabrication standards, and dependable after-sales support.
- ISO 9001:2015 Certified — Quality systems documented across design, procurement, fabrication, and testing
- MSME Registered — Recognised manufacturer under the Government of India
- 25+ Years of Crane Manufacturing — Deep domain knowledge across all crane types and industries
- 500+ Successful Installations — Proven track record across EOT, Gantry, Goliath, and Jib Cranes nationwide
- In-house Structural Engineering — CAD detailing and deflection calculations performed in-house for every project
- Foundation & Rail Design Support — Civil reference drawings provided for foundation blocks and rail embedment
- AMC & Spare Parts — Maintenance contracts and genuine spare parts available; service engineers cover Delhi NCR
